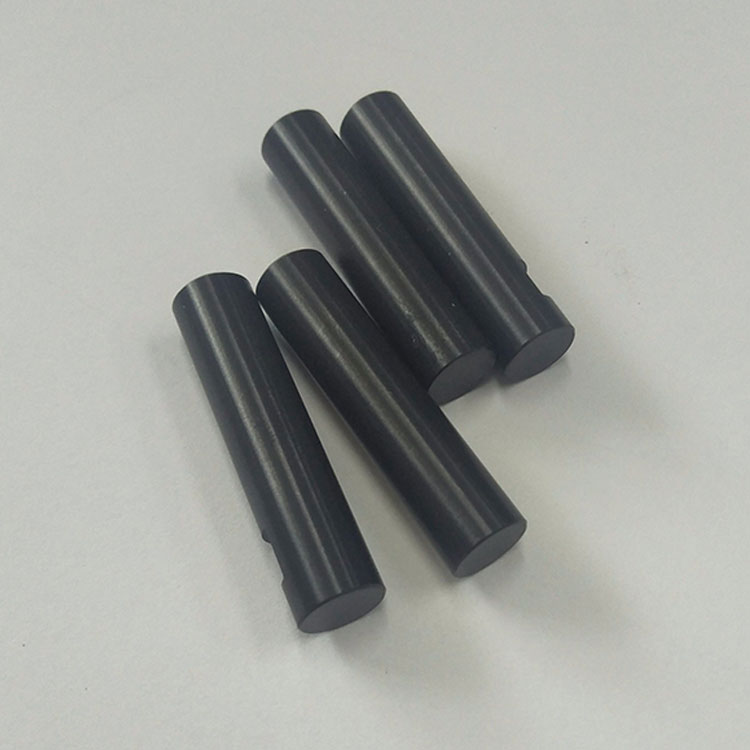

Silicon Nitride Rod

Silicon nitride rod has great strength and fracture toughness, good thermal shock resistance, and excellent wear and impact resistance. Nextgen Advanced Materials supplies the Silicon Nitride Rod with high quality and fast delivery. Meanwhile, the customization is available.

Send Inquiry    PDF DownLoad

Product Description

Silicon nitride ceramic is an inorganic material ceramic that does not shrink during sintering. There are five different methods to produce Silicon Nitride including SRBSN, GPSN, HPSN, HIP-SN and RBSN, make the application and working material different slightly. In these 5 methods of production, GPSN is most commonly used to produce Si3N4 components. The strength of silicon nitride, especially hot-pressed silicon nitride, is one of the hardest substances in the world. Si3N4 Rod is a covalent bond compound with high strength, low density, and high temperature resistance. It is ideal for a wide range of applications. Its low density and great strength also enable the optimal implementation of lightweight structures.

Silicon Nitride Rod Specifications

Item Unit Typical Values
Density g/cm3 3.22
Physical Properties
Hardness HRA90
Vickers Hardness (Hv50) HV0.5 >1550
Modulus of Elasticity Gpa 290
Flexural Strength MPa >600
Compressive Strength MPa 2500
Fracture Toughness, KIc MPa•m1/2 >6.0
The Thermodynamic Property
Max. Use Temperature ºC 1200
Thermal Conductivity W/m•k 15-20
Thermal Expansion Coefficient 10-6/ ºC >3.1
Thermal Shock Resistance ΔT ºC 500
Specific Heat Capacity KJ/kg.k 700
Electrical Property
Volume Resistivity at 20 ºC Ω•cm 1.0×1012
