Silicon Nitride Welding Pin
  • Silicon Nitride Welding PinSilicon Nitride Welding Pin
  • Silicon Nitride Welding PinSilicon Nitride Welding Pin
  • Silicon Nitride Welding PinSilicon Nitride Welding Pin

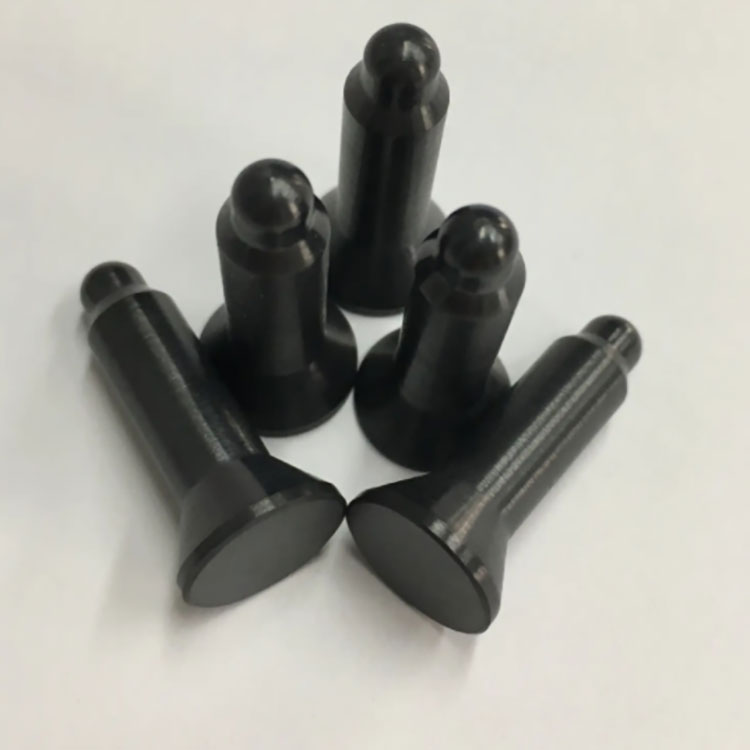

Silicon Nitride Welding Pin

Due to its high strength and toughness, Silicon Nitride Welding Pins greatly increases performance compared with conventional solid ceramic pins made from alumina Oxide , which break easily in service. Nextgen Advanced Materials supplies the Silicon Nitride Welding Pin with high quality and fast delivery. Meanwhile, the customization is available.

Send Inquiry    PDF DownLoad

Product Description

Nextgen Advanced Materials INC is a professional leading Silicon Nitride Welding Pin manufacturer with high quality and reasonable price. Welcome to contact us. Silicon nitride welding pin is made of a high-melting-point ceramic material that is extremely hard and relatively chemically inert. Due to the even performance in high temperature, Si3N4 is a commonly used ceramic material in the metallurgical industry. It has excellent thermal shock resistance due to the microstructure. The creep and oxidation resistance of Si3N4 is also superior, its low thermal conductivity and high wear resistance also make it an outstanding material that can withstand conditions of most industrial applications.


Mechanical Properties
Density 3.21 g/cm3
Compressive Strength 3000 MPa
Flexural Strength 800 MPa
Weibull-Modulus m 15
Fracture Toughness KIc 6.5 MPa m^1/2
Young’s Modulus E 320 GPa
Poisson Ratio 0.28
Hardness Vickers (HV 1) 16 GPa
Thermal Properties
Maximum Temperature (Inert Gas) 1200°C
Maximum Temperature (Air) 1100°C
Thermal Conductivity @ 20°C 28 W/mK
Thermal Conductivity @ 1000°C 16 W/mK
Thermal Expansion (20–100°C) 2*10-6/K
Thermal Expansion (20–1000°C) 3.510-6/K
Thermal Shock parameter R1 600 K
Thermal Shock parameter R2 15 W/mm
Electrical Properties
Resistivity at 20°C 10^12 Ωcm
Resistivity at 800°C 10^7 Ωcm
Dielectric constant 6 MHz
