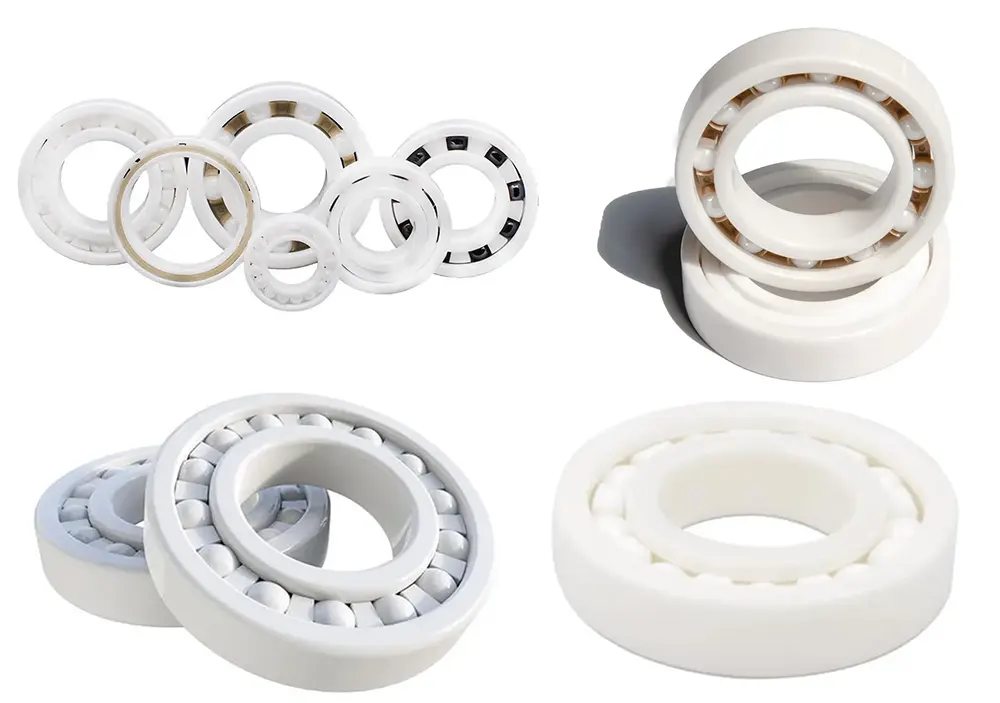

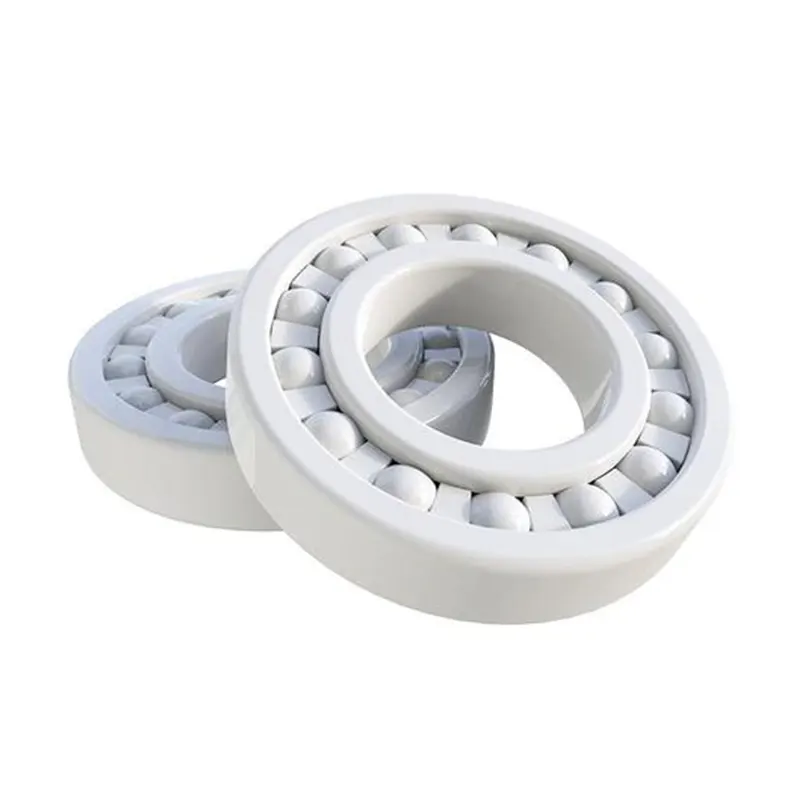

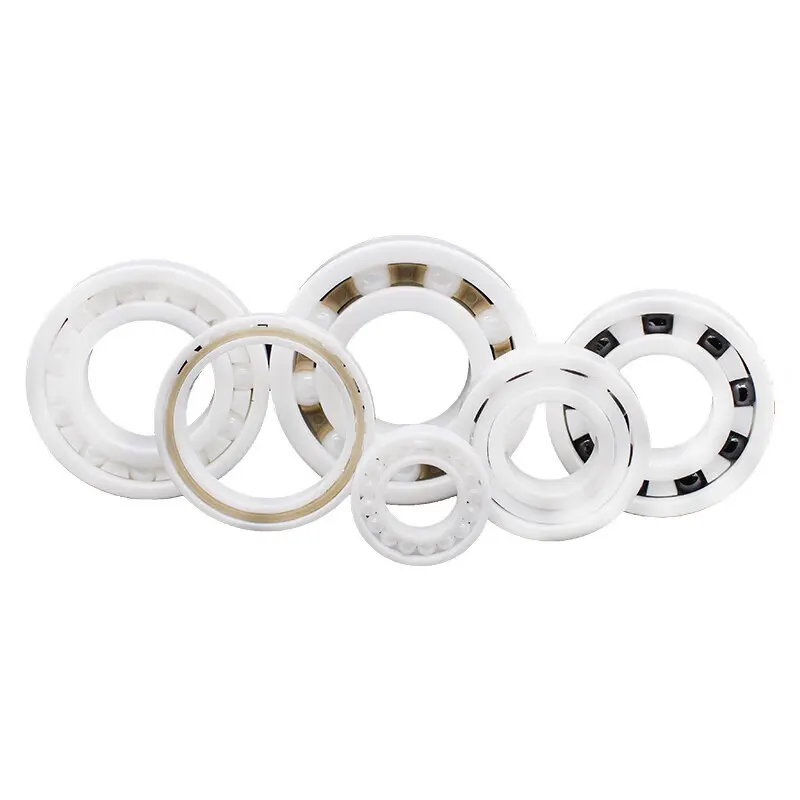

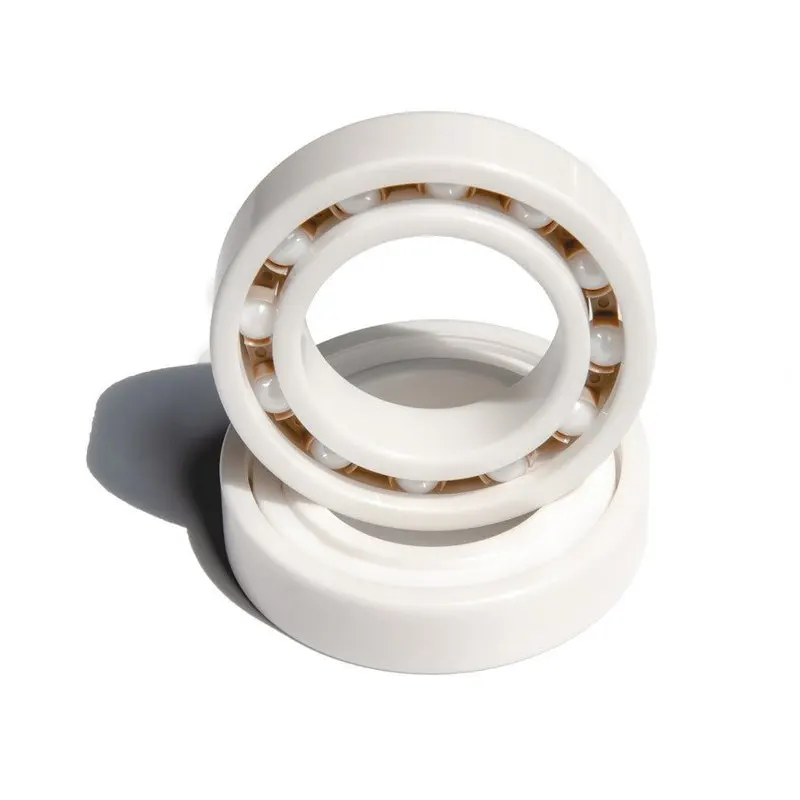

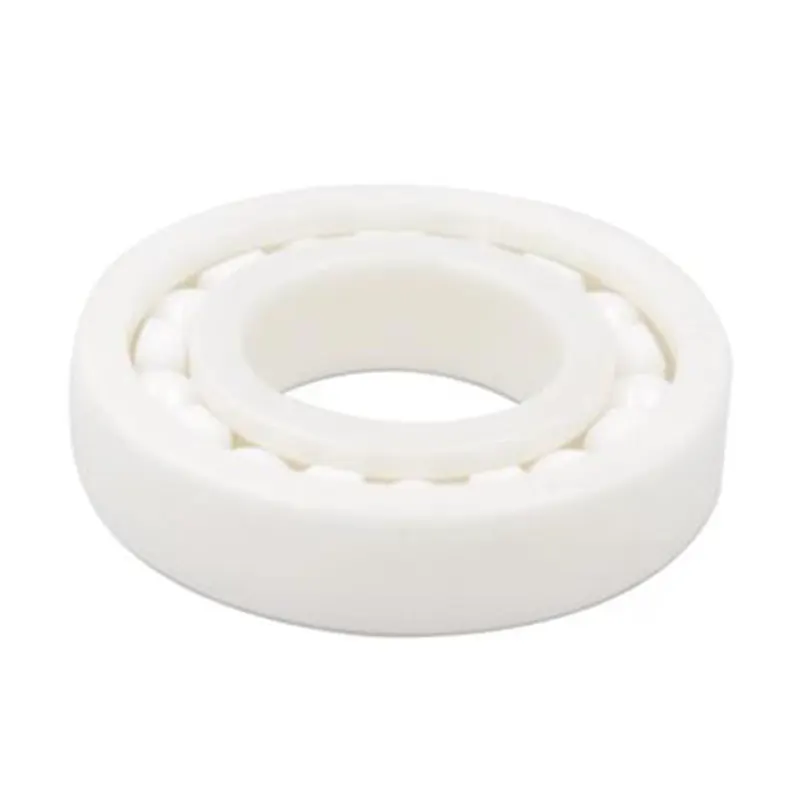

Nextgen Advanced Materials supplies high-quality and high-purity Zirconia Ceramic Bearings with fast delivery. Customization is available.
Zirconia ZrO2 Ceramic Bearings have a high-temperature tolerance of up to 400℃. As the temperature exceeds the ambient level, it is advisable to reduce the maximum speed, especially for unlubricated bearings. Bearings equipped with a PEEK cage maintain a temperature rating of up to 250℃, determined by the cage material's lower maximum temperature. In instances where the inner ring temperature is anticipated to surpass the outer ring temperature, opting for a looser radial play at high temperatures is recommended, minimizing the radial play of the bearing. Our ZrO2 bearings are supplied with a standard looser C3 radial play.
| Material | ZrO2 |
| OD Size | 3-200mm |
| ID Size | 0.5-180mm |
| Hardness (Kg/mm2) | 1100 |
| Max Use Temperature | 1500 |
| Thermal Conductivity | 2.5 |
